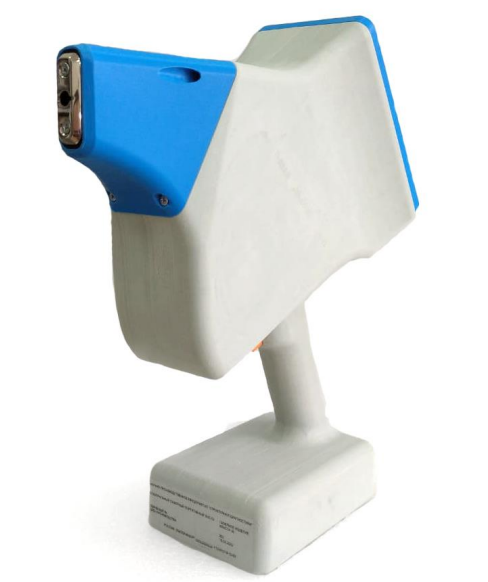

Portable LIBS Spectrometer LIS-02
The Portable Laser Spectrometer LIS-02 is a compact and high-precision solution designed for fast and accurate elemental analysis of metals. Engineered for on-site testing, it enables instant material identification without damaging the sample, making it ideal for quality control, inspection, and metal verification applications.
Utilizing advanced laser-based spectroscopy technology, the LIS-02 delivers reliable elemental composition results within seconds. Its portable design, intuitive interface, and robust construction make it suitable for both shop-floor and field use, even in demanding industrial environments.

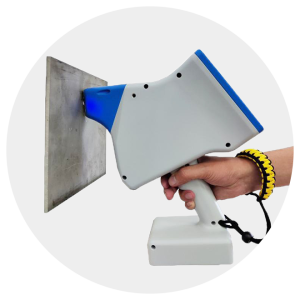

Portable LIBS LIS-02 Applications

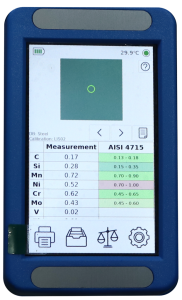

LIS-02 Screen
Applications
Metal manufacturing & fabrication
Alloy identification and verification
Quality control and inspection
Scrap metal sorting and recycling
Foundries and casting units
Instant material identification
High accuracy and reliability
Reduces testing time and operational costs
Ideal for both laboratory and field use
Features of Portable LIBS Spectrometer LIS-02
Carbon analysis: The spectrometer LIS-02 allows to measure carbon concentration in steels without using argon, directly in the air.
Speed: High speed analysis, result in 1 sec.
Accuracy: Provides unsurpassed resolution of 0.01 nm over the entire measurement range.
Portability: Small dimensions and weight comparable to a handheld power tool.
Reliable: LIBS Spectrometer has unlimited operating life, compared to X-ray fluorescence spectrometers (XRF).
Built-in grade library: Based on the results of the analysis, the steel or alloy grade is displayed on the screen.
CE Value: Measurement of carbon equivalent values
Camera: High resolution camera to capture the location of analysis.
Technical Characteristics
Source of radiation
Measurement point size
Measurement duration
Laser emitter safety class
Working spectral range
Display
Data Transfer
Language
Security
Duration of autonomous work
Power
Operating temperature
Pulsed DPSS Laser1064 nm
50 Micron
1.0 Sec
3B
177-380nm
5″ color touch screen display
WIFI & Blutooth
English, German & Russian
Password Protection
More than 200 dimensions
Replaceable Li-ion battery
From -26 to +40 °С device temerature & ambient
air temperature from – 15 to +55°С
Delivery Set
When a physical machine is delivered, specific information and documentation are crucial for a complete and professional handover process. This content ensures proper installation, operation, and maintenance.
- Portable LIBS Spectrometer
- Thermoprinter
- Batteries
- Transport Case
- Protective Cover
- Reference Sample
