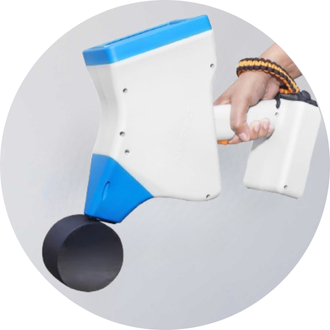

LIS-02 is designed for operational incoming inspection of rolled metal products, determination of steel grades, scrap of non-ferrous and ferrous metals and alloys. The metal analyzer ensures high speed in determining the following chemical elements: C, Be, Mg, Al, Si, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Nb, Mo, Sn, Sb, W, Pb and others.
The portable laser spectrometer LIS-02 is included in the State Register of Measuring Instruments under No. 85726-22.
The operating principle of LIS-02 is based on the method of laser-spark emission spectrometry. A short laser pulse converts several micrograms of metal into plasma, the radiation is decomposed into a spectrum and the concentration of chemical elements is determined by the intensity of the spectral lines.
Application areas
Input/ Output control of metals, alloys
Scrap sorting
Spectral analysis in laboratory research
Surface carbon detection of heat treated job
Spectral analysis of weld joints
Segregation of low carbon SS such as 304 & 304L
FEATURES OF SPECTROMETER LIS-02
Analysis of carbon: LIS-02 allows you to measure the concentration of carbon in high- and low-alleged steels without the use of argon, right in the air. For a more accurate measurement of the concentration of chemical elements, including carbon in steel, calibration function can be used for samples with a known chemical composition. When using this function, it is possible to distinguish those close in the setting of metal brands, such as 316 and 316L, to solve other similar problems.
Speed: High speed analysis, result in 1 sec.
Accuracy: Provides unsurpassed resolution of 0.01 nm over the entire measurement range. A specially designed Russian portable spectrometer provides high accuracy for determining the chemical composition of samples.
Portability: Small dimensions and weight comparable to a handheld power tool. Small dimensions and mass comparable to a manual power tool.
Reliable: LIBS Spectrometer has unlimited operating life, compared to X-ray fluorescence spectrometers (XRF). Absence of fragile elements and an infinite work resource, compared with X-ray fluorescent (RFA) spectrometers. The nasal element of the body made of the metal allows you to work with a spicy metal chip, without fear of the safety of the device. Protecting optical elements with sapphire glass provides additional protection against mechanical damage.
CE Value: Measurement of carbon equivalent values
Camera: High resolution camera to capture the location of analysis.
Homogeneity of the chemical composition: The measurement point of LIS-02 has a size of the order of 0.05 mm, therefore, for complex alloys at single measurements in different places, the result may differ significantly. For quantitative chemical analysis, LIS-02 provides a serial shooting mode. After each measurement, it is necessary to move the spectrometer relative to the sample so that the next measurement is performed at a new point. At the same time, it is important to control the quality of the surface at the point of measurement and the density of the spectrometer to the sample. For these purposes, LIS-02 has a built-in high-resolution camera, positioning mode and other features detailed in detail in the user manual.
Built-in grade library: Based on the results of the analysis, a steel or alloy brand is displayed on the screen, corresponding to the percentage of chemical elements of this sample. Under the same chemical composition can be suitable several brands. The analyzer in the basic kit contains a tormarker according to GOST, AISI/ASTM, UNS, BS/DIN, JIS, but can be equipped with any other marker at the request of the customer.
LisMobile software: Free application for smartphones with Android OS.allows you to use the mobile phone screen as external display of the device for viewing the image with camera of the device and measurement results; add description, photo sample to measurement; form reports.Download User Manual LisMobile.
Safety: Security class 3B. The output hole is protected by a transportation trend that provides protection against unintentional radiation.
Detection for different bases and alloy elements
| Fe | C, Si, Mn, Cr, Ni, V, Cu, Ti, Mo, Co, Al, Nb, W, Mg, Zn |
| Al | Si, Zn, Mn, Mg, Fe, Cu, Ni, Be, Ti, Cr, V, Sb, Cd |
| Cu | Si, Zn, Mn, Al, Be, Sb, Ni, Sn, Pb, Fe, Cr, |
| Ni | Al, Si, Ti, V, Cr, Mn, Fe, Co, Cu, Nb, Mo, W, C |
| Ti | Mo, V, Al, Fe, Cr, Zr, Mn, Sn, Ni, Nb |
| Zn | Al, Cu, Fe, Sb, Sn, Mg, Pb |

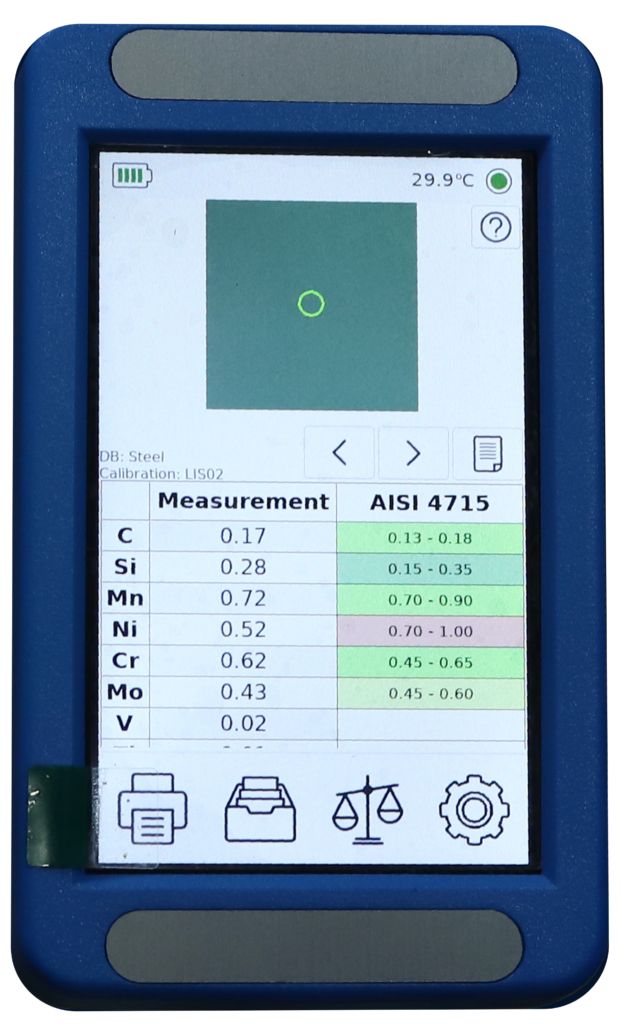

Device Screen after testing
TECHNICAL CHARACTERISTICS
| Source of radiation | Pulsed DPSS Laser1064 nm |
| Measurement point size | 50 microns |
| Measurement duration | 1.0 sec |
| Laser emitter safety class | 3b |
| Working spectral range | 177-380 nm |
| Display | 5″ color touch screen display |
| Date Transfer | WIFI and Bluetooth |
| Language | English, German and Russian |
| Security | Password Protection |
| Duration of autonomous work | More than 200 dimensions |
| Power | Replaceable Li-ion battery |
| Operating conditions : ambient air temperature | From -15 to +50 °С |
OTHER INCLUSIONS
- In Portable LIBS Spectrometer LIS -02 – Possibility to adjust the device operation parameters to the selected task
- Free built-in client software
- 12 months warranty
